Li-ion/Polymer,Lead-Acid,NIMH NICD Battery Charger Circuits
Here we provided several schematic drawings of battery charger circuit. These circuits covered 5W~200W NiCd, NIMH, Lead-Acid, and Li-Ion/Polymer ,LiFePo4 battery packs. We hope chargers circuits files can help our users to select correct chargers also can help them to get a good understanding about our products.
3.7V 2000mAH~4000mAh Li-ion/Polymer Battery Charger Circuit
![3.7V 2000mAH~4000mAh Li-ion/Polymer Battery Charger Circuit 3.7V 2000mAH~4000mAh Li-ion/Polymer Battery Charger Circuit](/uploads/fck/201311/5296fdcba15cb.jpg)

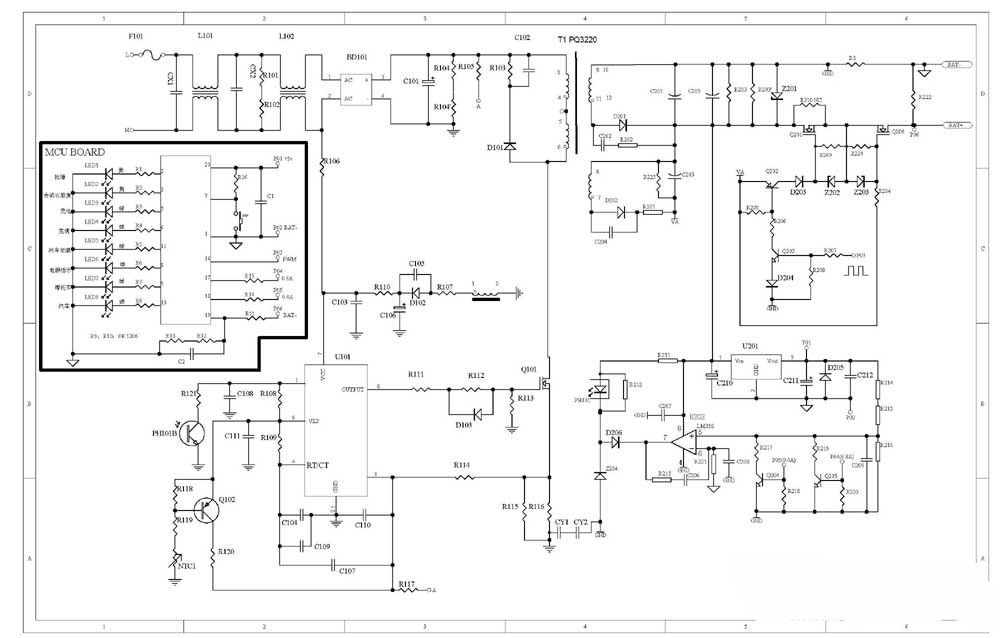

![12V 9Ah~90Ah Lead-Acid(AGM, SLA, GEL) battery Charger circuit, with battery monitor meter function 12V 9Ah~90Ah Lead-Acid(AGM, SLA, GEL) battery Charger circuit, with battery monitor meter function](/uploads/fck/201311/5296fdf90d7df.jpg)
24V 4Ah~20Ah NIMH NICD battery Charger circuit
![24V 4Ah~20Ah NIMH NICD battery Charger circuit 24V 4Ah~20Ah NIMH NICD battery Charger circuit](/uploads/fck/201311/5296fe0a57942.jpg)
