LiFePO4 Battery Charger
3PL05XXSF Series LiFePO4 Battery Charger
- Input: AC 90~264V 50/60Hz 0.1A
- Output: DC 3.6~10.8V 5W max
- Protections: OVP, OCP and Shorted
- Work mode: CC、CV (Two stages)
- LED Indicator: Bi-color LED. Red/Green
- Safety approval: CE
- Size&weight: 61 x 50 x 26mm/85g
- Suit for: 3.2V~9.6V, 1~3cells Li-Fe battery packs
- Application: Power Tool,Electrical Bike,Mobile Lamp,Security system and so on
P2012-FX Series LiFePO4 Battery Charger
- Input: AC 90~264V 50/60Hz 0.5A
- Output: DC 7.2~14.4V 20W max
- Protections: OVP、OCP、shorted and Reversed
- Work mode: CC、CV （Two stages）
- LED Indicator: Bi-color LED. Red/Green
- Safety approval: CE cTUVus PSE CCC
- Size&weight: 84 x 45 x 36mm/120g
- Suit for: 6.4V~12.8V, 2~4cells Li-Fe battery packs
- Application: Power Tool,Electrical Bike,Mobile Lamp,Security system and so on
G60-FXX Series LiFePO4 Battery Charger with Battery Fuel Gauge
- Input: AC 90~264V 50/60Hz 1.0A
- Output: DC 14.4~28.8V 60W max
- Protections: OVP、OCP、shorted and Reversed
- Work mode: Pre-charge、CC、CV and cut-off（Four stages）
- LED Indicator: With 4 LEDs Battery Meter,20%~100%
- Safety approval: CE cTUVus PSE CCC
- Size&weight: 127 x 67 x 38mm/270g
- Suit for: 12.8V~25.6V, 4~8cells Li-Fe battery packs
- Application: Power Tool,Electrical Bike,Mobile Lamp,Security system and so on
| Model | Rating Voltage | Rating Current | Industry | View |
| G60-12F4 | 14.2V | 3.3A | Power Tools、Security System | View More Download |
| G60-12F5 | 18.0V | 2.6A | Power Battery Pack、Power Tools | View More Download |
| G60-24F6 | 21.6V | 2.1A | Power Tools、Security System | View More Download |
| G60-24F7 | 25.2V | 1.8A | Power Battery Pack、Power Tools | View More Download |
| G60-24F8 | 28.8V | 1.6A | Power Tools、Security System | View More Download |
L100-XXF Series LiFePO4 Battery Charger
- Input: AC 90~264V 50/60Hz 1.5A
- Output: DC 14.4~54.6V 100W max
- Protections: OVP、OCP、Shorted and Reversed
- Work mode: CC、CV （Two stages）
- LED Indicator: Bi-color LED. Red/Green
- Safety approval: CE cTUVus PSE CCC
- Size&weight: 175 x 72 x 40mm/400g
- Suit for: 12.8V~51.2V, 4~16cells Li-Fe battery packs
- Application: Power Tool,Electrical Bike,Mobile Lamp,Security system and so on
| Model | Rating Voltage | Rating Current | Industry | View |
| L100-12F | 14.4V | 5.0A | Power Tools、Security System | View More Download |
| L100-24F | 28.8V | 2.8A | Power Battery Pack、Power Tools | View More Download |
| L100-36F | 43.2V | 1.8A | Power Tools、Security System | View More Download |
| L100-48F | 57.6V | 1.5A | Power Battery Pack、Power Tools | View More Download |
G100-XXF Series LiFePO4 Battery Charger with Battery Fuel Gauge
- Input: AC90~264V 50/60Hz 1.5A
- Output: DC14.4~57.6V 100W max
- Protections: OVP、OCP、Shorted and Reversed
- Work mode: Pre-charge、CC、CV and cut-off（Four stages）
- LED Indicator: With 4 LEDs Battery Meter,20%~100%
- Safety approval: CE cTUVus PSE CCC
- Size&weight: 175x 72 x 40mm/400g
- Suit for: 12.8V~51.2V, 4~16cells Li-Fe battery packs
- Application: Power Tool,Electrical Bike,Mobile Lamp,Security system and so on
| Model | Rating Voltage | Rating Current | Industry | View |
| G100-12F | 14.4V | 5.0A | Power Tools、Security system | View More Download |
| G100-24F | 28.8V | 2.8A | Power Battery Pack、Power Tools | View More Download |
| G100-36F | 43.2V | 1.8A | Power Tools、Security system | View More Download |
| G100-48F | 57.6V | 1.5A | Power Battery Pack、Power Tools | View More Download |
G168-XXXXXX Series LiFePO4 Battery Charger
- Input: AC 90~264V 50/60Hz 2.2A
- Output: DC 14.4~57.6V 168W max
- Protections: OVP、OCP、OTP、Shorted and Reversed
- Work mode: Pre-charge、CC、CV and cut-off（Four stages）
- LED Indicator: Bi-color LED. Red/Green
- Safety approval: CE GS PSE SAA FCC CCC cTUVus CB BS
- Size&weight: 175 x 72 x 40mm/680g
- Suit for: 12.8V~51.2V，4~16cells Li-Fe battery packs
- Application: Power Tool,Electrical Bike,Mobile Lamp,Security system and so on
| Model | Rating Voltage | Rating Current | Industry | View |
| G168-144110 | 14.4V | 11.0A | Power Tools、Security system | View More Download |
| G168-180093 | 18.0V | 9.3A | Power Battery Pack、Power Tools | View More Download |
| G168-216070 | 21.6V | 7.0A | Power Battery Pack 、Lighting Industry | View More Download |
| G168-288057 | 28.8V | 5.7A | Power Tools、Security system | View More Download |
| G168-360045 | 36.0V | 4.5A | Power Battery Pack、Power Tools | View More Download |
| G168-432038 | 43.2V | 3.8A | Power Tools、Security system | View More Download |
| G168-576029 | 57.6V | 2.9A | Power Battery Pack 、Lighting Industry | View More Download |
G300-XXXXXX Series LiFePO4 Battery Charger with Battery Fuel Gauge
- Input: AC 90~264V 50/60Hz 4.5A
- Output: DC 14.4~64.8V 300W max
- Protections: OVP、OCP、OTP、Shorted and Reversed
- Work mode: Pre-charge、CC、CV and Cut-off（Four stages）
- LED Indicator: Bi-color LED. Red/Green
- Safety approval: CB、CE、FCC
- Size&weight: 220 x 105 x 43mm/1.3Kg
- Suit for: 12.8V~57.6V，4~18cells Li-Fe battery packs
- Application: Power Tool,Electrical Bike,Mobile Lamp,Security system and so on
| Model | Rating Voltage | Rating Current | Industry | View |
| G300-144180 | 14.4V | 18.0A | Power Battery Pack、Power Tools | View More Download |
| G300-216138 | 21.6V | 13.8A | Power Tools、Security system | View More Download |
| G300-288100 | 28.8V | 10.0A | Power Battery Pack、Power Tools | View More Download |
| G300-360080 | 36.0V | 8.0A | Power Battery Pack 、Lighting Industry | View More Download |
| G300-432069 | 43.2V | 6.9A | Power Tools、Security system | View More Download |
| G300-576050 | 57.6V | 5.0A | Power Battery Pack、Power Tools | View More Download |
L500-XXF Series LiFePO4 Battery Charger
- Input: AC 90~264V 50/60Hz 5.5A
- Output: DC 28.8~57.6V 500W max
- Protections: OVP、OCP、OTP、Shorted and Reversed
- Work mode: CC、CV （Two stages）
- LED Indicator: Bi-color LED. Red/Green
- Safety approval: CE PSE
- Size&weight: 250 x 125 x 72mm/1.2Kg
- Suit for: 25.6V~51.2V，8~16Cells Li-Fe battery packs
- Application: Power Tool,Electrical Bike,Mobile Lamp,Security system and so on
G600-XXXXXX Series LiFePO4 Battery Charger with Battery Fuel Gauge
- Input: AC 90~264V 50/60Hz 6.8A
- Output: DC 14.4~72V 600W max
- High convert efficiency: 95% @220V full load
- High power factor: 95% @220V full load
- Multi-protections: OVP、OCP、OTP、Shorted and Reversed
- Work mode: Pre-charge、CC、CV and Cut-off（Four stages）
- LED Indicator: Digital LCD display voltage，current and charging process
- Size&weight: 240 x 117 x 66mm/1.5Kg
- Suit for: 12.8V~64V, 4~20cells Li-Fe battery packs
- Application: Power Tool,Electrical Bike,Mobile Lamp,Security system and so on
| Model | Rating Voltage | Rating Current | Industry | View |
| G600-144340 | 14.4V | 34.0A | Power Tools、Security System | View More Download |
| G600-288200 | 28.8V | 20.0A | Power Battery Pack、Power Tools | View More Download |
| G600-360166 | 36.0V | 16.6A | Power Tools、Security System | View More Download |
| G600-576104 | 57.6V | 10.4A | Power Battery Pack、Power Tools | View More Download |
| G600-720083 | 72.0V | 8.3A | Power Tools、Security System | View More Download |
G1200-XXXXXX Series LiFePO4 Battery Charger
- Input: AC 90~264V 50/60Hz 14A
- Output: DC 28.8~72V 1200W max
- High convert efficiency: 95% @220V full load
- High power factor: 95% @220V full load
- Multi-protections: OVP、OCP、OTP、Shorted and Reversed
- Work mode: Pre-charge、CC、CV and Cut-off（Four stages）
- LED Indicator: Digital LCD display voltage，current and charging process
- Casing material and cooling: Plastic housing，fan cooling
- Safety approval: CE
- Size&weight: 265 x 134 x 60mm/2.5Kg
- Suit for: 25.6V~64V, 8~20cells Li-Fe battery packs
- Application: Power Tool,Electrical Bike,Mobile Lamp,Security system and so on
| Model | Rating Voltage | Rating Current | Industry | View |
| G1200-288360 | 28.8V | 36.0A | Power Battery Pack、Power Tools | View More Download |
| G1200-360300 | 36.0V | 30.0A | Power Battery Pack 、Lighting Industry | View More Download |
| G1200-432277 | 43.2V | 27.7A | Power Tools、Security System | View More Download |
| G1200-576200 | 57.6V | 20.0A | Power Battery Pack、Power Tools | View More Download |
| G1200-648180 | 64.8V | 18.0A | Power Battery Pack 、Lighting Industry | View More Download |
| G1200-720166 | 72.0V | 16.6A | Power Battery Pack、Power Tools | View More Download |
G3600-XXXXXX Series LiFePO4 Battery Charger
- Input: AC 90~264V 50/60Hz 40A
- Output: DC 28.8~144V 3600W max
- High convert efficiency: 95% @220V full load
- High power factor: 95% @220V full load
- Protections: OVP、OCP、OTP、Shorted and Reversed
- Work mode: Pre-charge、CC、CV and Cut-off（Four stages）
- LED Indicator: Digital LCD display voltage，current and charging process
- Casing material and cooling: Metal housing and fan cooling
- Safety approval: CB CE FCC
- Size&weight: 355 x 290 x 165mm/10.0Kg
- Suit for: 25.6V~128V, 8~40cells Li-Fe battery packs
- Application: Power Tool,Electrical Bike,Mobile Lamp,Security system and so on

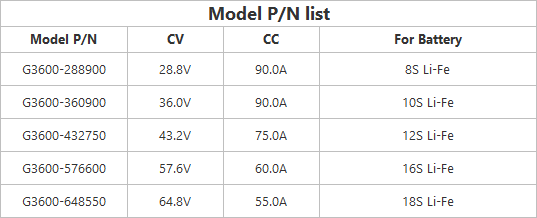

Model P/N list |
|||
| Model P/N | CV | CC |
For Battery |
| G3600-288900 | 28.8V | 90.0A | 8S Li-Fe |
| G3600-360900 | 36.0V | 90.0A | 10S Li-Fe |
| G3600-432750 | 43.2V | 75.0A | 12S Li-Fe |
| G3600-576600 | 57.6V | 60.0A | 16S Li-Fe |
| G3600-648550 | 64.8V | 55.0A | 18S Li-Fe |
| G3600-720480 | 72.0V | 48.0A | 20S Li-Fe |
